Vehicle and sensors localisation

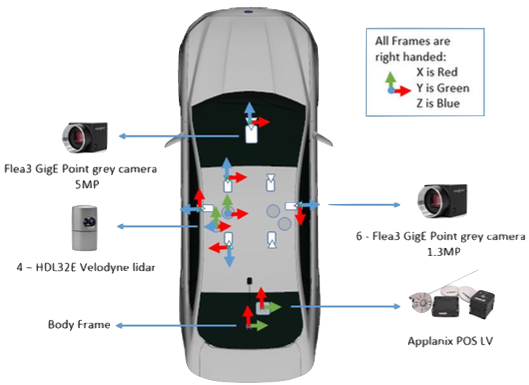

As the base platform in our experiment, we use one car BMW series 7. The car has been adapted so that the sensors can be properly installed in it. A data logging system from the Vigem model... was installed in the trunk, which allows recording data from all sensors in real time. In addition, a PC was installed in the car to monitor and manage the data logging process The sensors localizastions are pressented on figure below.
Lidar

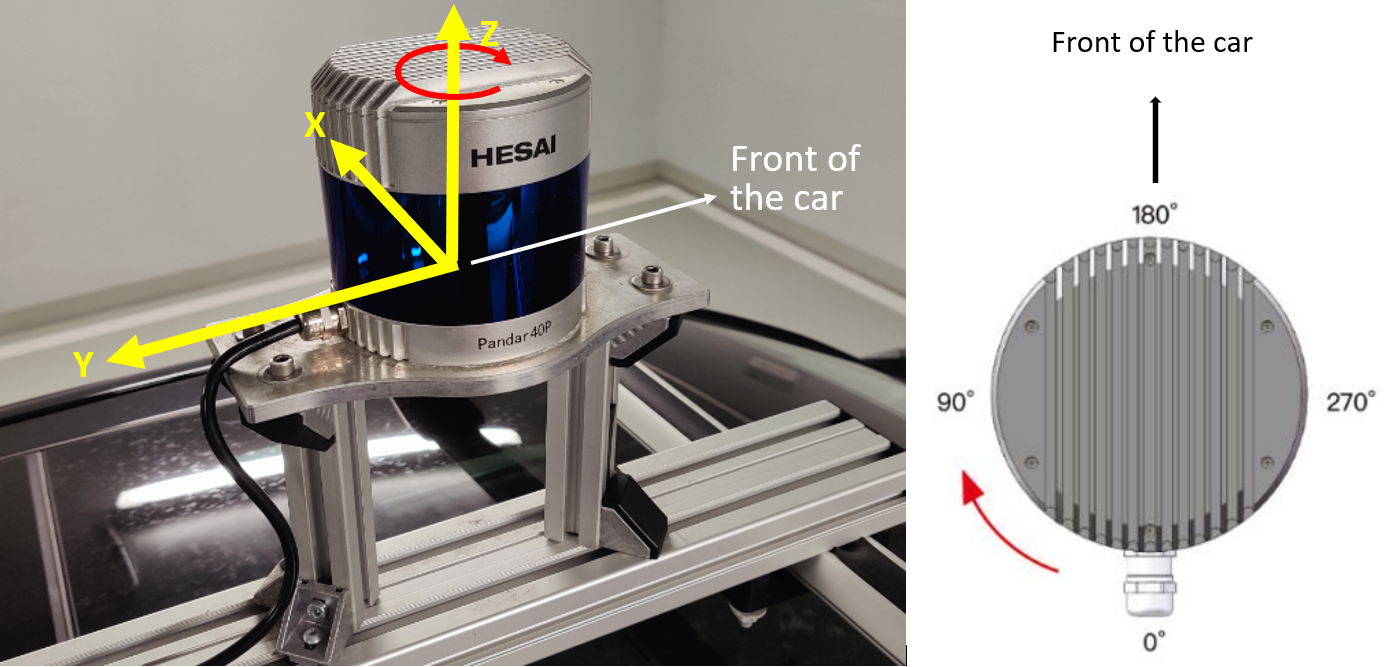

For distance measurements the Pandar 40P lidar (Hesai Technologies) was used. It is mounted on a roof rack, allowing unobscured 360 degree FOV. This device has 40 horizontal channels and a refresh rate of 10Hz. Detailed information on this sensor can be found in official manual. The Pandar 40P lidar from Hesai Technologies was used for distance measurements. Lidar was mounted on a dedicated rack on the roof of the car (Fig. ...). According to the specification, the Pandar 40P emits and receives 40 pairs of laser beams rotating around the Z axis clockwise using a built-in motor. The Y axis corresponds to an~angle of 0 degrees (Fig....)
